Steel Fence
Customers are increasingly demanding garrison steel fencing looks not only to prevent corrosion, but also a variety of different textures, three-dimensional, or vintage, antique and other artistic effects, or gorgeous appearance. Therefore, on the basis of the above, from the current market sales of thousands of varieties of paint with the base surface affinity selected the strongest, most anti-aging paint brands and reasonable method of application, it is more important. Only targeted selection will obtain a predetermined decorative effect and reduce.

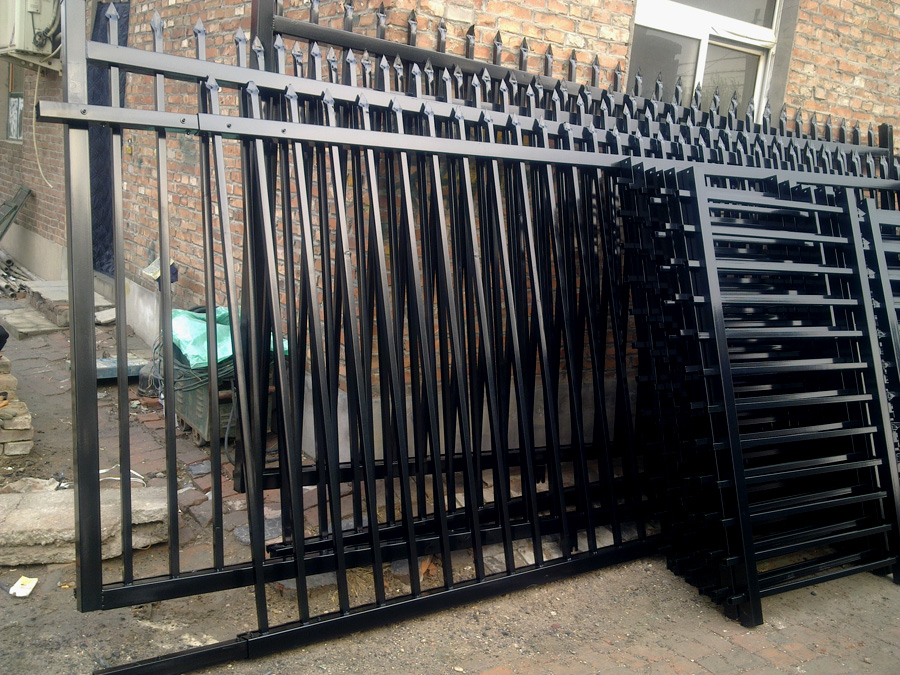

Steel fencing made of zinc steel as a material made into a variety of barriers, because of its high strength, high hardness, attractive appearance, bright color, etc., into a residential area with mainstream products. The traditional use of iron fence, aluminum material, it needs welding and other technology, and the texture is soft, easy to rust, a single color. Our steel fence perfect solution to the shortcomings of the traditional iron fence, and affordable, become traditional steel fence material alternatives. Galvanized steel fence combinations interspersed with no welding to install, substrate thickness is 2-3 times that of stainless steel, more than 500 kinds of colors to choose from, the surface oxidation of imported European Akzo Nobel Powder coating, enhanced antioxidant barrier anti-UV, weathering corrosion ability.
Steel Fence Application

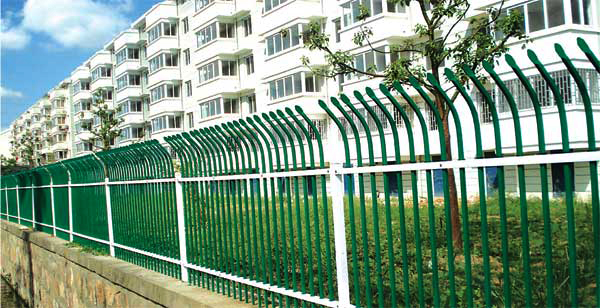

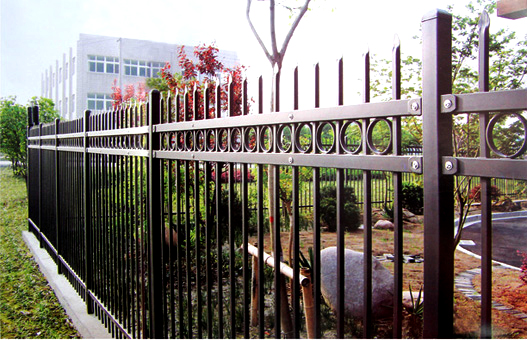

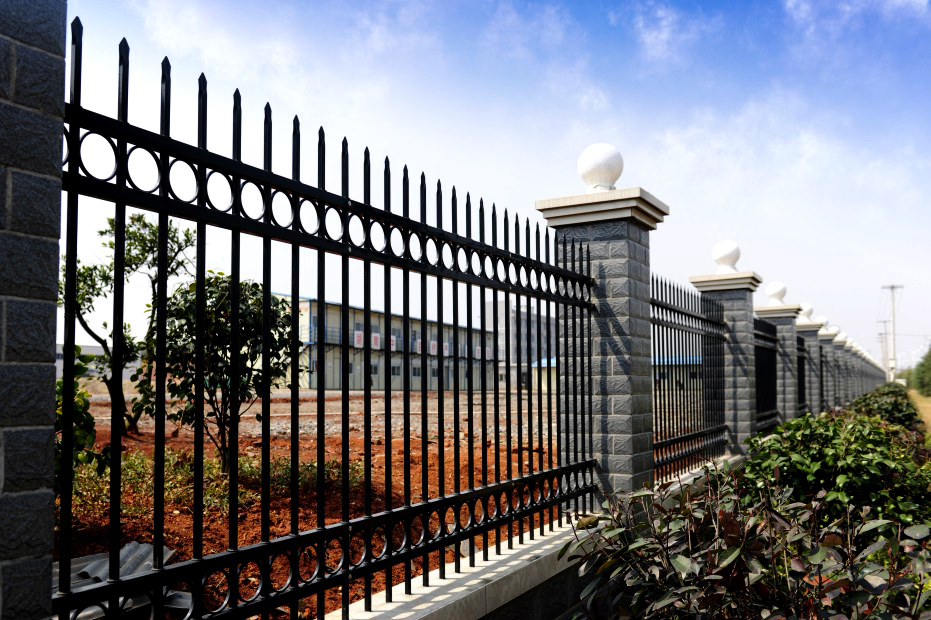

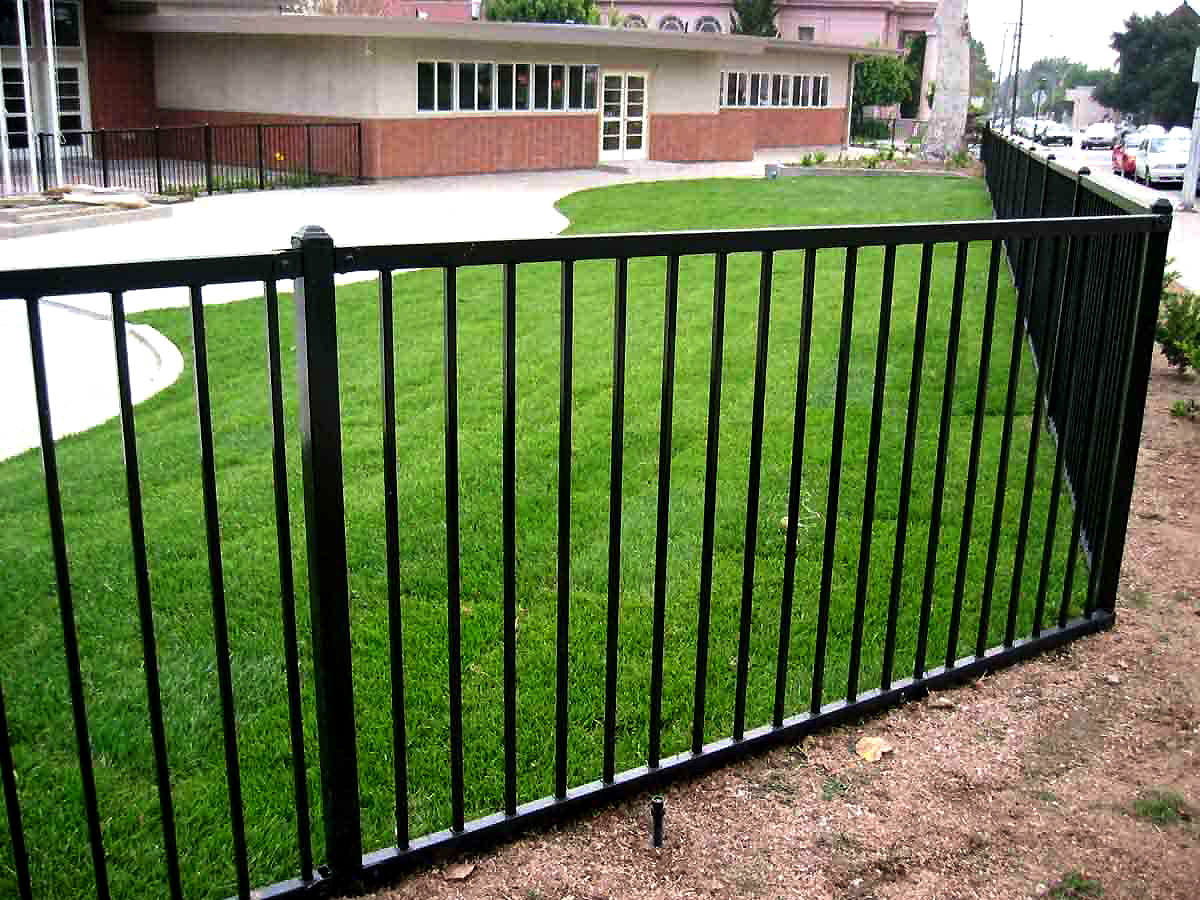

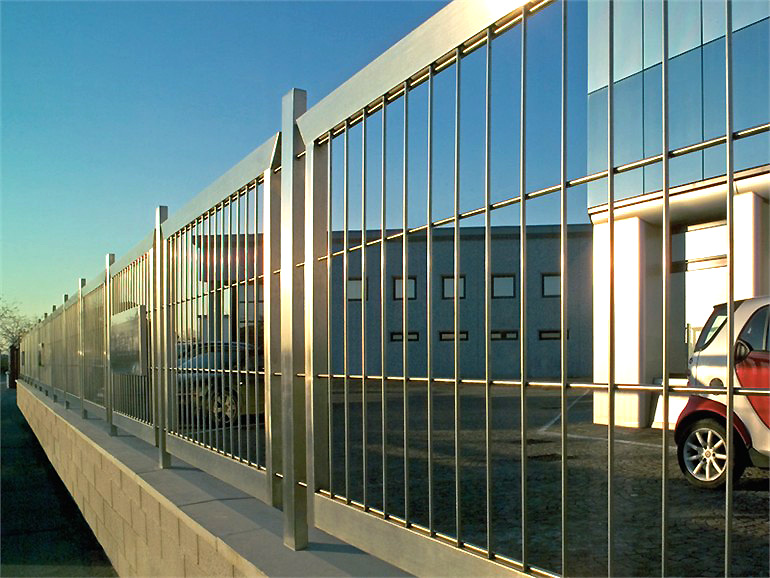

Zinc steel as the base material, used in the construction of the steel fence products mainly include: balcony rails, protective windows, stairs, handrails, fences, garden fences, shutters, air conditioning, fence, road fence. Industrial fences (eg factory fence, commercial venues fence), agricultural fence (eg field fence, livestock fence), civil fences (such as a building roof fences, fence walls, etc.), public facilities, fences (such as road fences), etc.
Steel Fence Specification
1)Zinc steel substrate is made of hot-dip galvanized steel strip galvanized steel of various specifications, using high-frequency welding technology, welding flat, sturdy.
2)Galvanized steel pipe surface zinc reached 60-80g / ㎡, 3-5 years at room temperature can not rust.
3)Zinc galvanized pipe steel products is to re-processing. Process: Machining → chemical treatment (degreasing → go gray phosphate → passivation) → electrostatic spraying (→ curing (220 ° high imitation enamel curing) through multi-channel treatment process can reach 20 years does not rust
4)Zinc steel products characterized by the largest non-welded, galvanized steel fittings and pipe developed the perfect combination to achieve the beautiful, strong and suitable to meet American Fence Association standards.
5)The steel fence surface with powder coating.
6)The steel fence with beautiful, color can be free with rainbow color wins, no welding interspersed combination with superior protection, self-cleaning and environmental protection, to achieve truly low carbon green living products.
| steel fence |
| Crossbar |
32X32 |
40X40 |
45X445 |
| Vertical rod |
16X16 |
19X19 |
25X25 |
| Pole |
50X50 60X60 80X80 |
| Column spacing |
3000 |
3000 |
3000 |
| Vertical rod spacing |
105mm |
105mm |
105mm |
| Height |
450-2500mm |

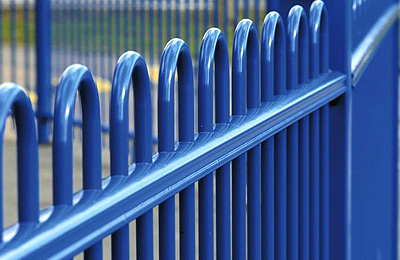

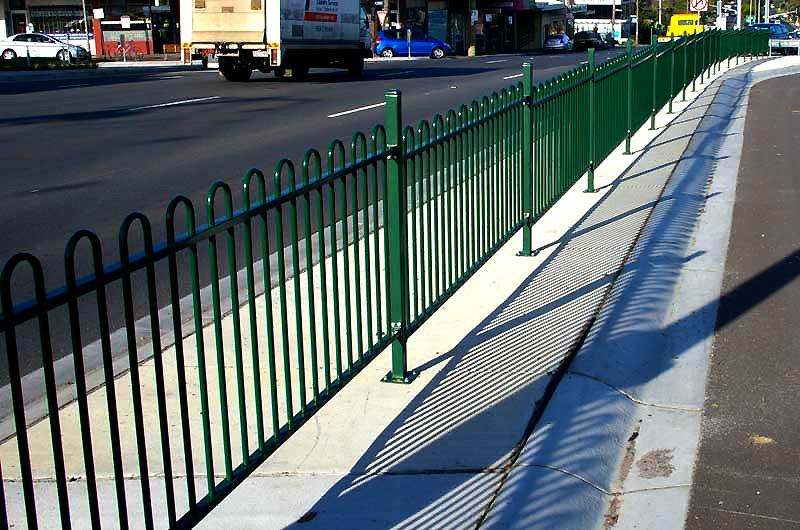

Loop Top Fence is made of Reverse U type about quantity N and connecting with both edge post and bottom horizontal brace .And it is usually fixed by cast based or precut pouring.Loop Top Fence is widely used in isolation of municipal and highway as well as wall guarding.
total size: 1270*3000mm
Post: 60*80*2*1100 Bottom horizontal brace: 40*65*2*2800
Loop Top space: Middle of pitch 180mm net space:165mm
Distance of u type:70mm Middle iron plate connecting fiiting:50*70*5mm
Loop Top round steel:155mm
other Loop Top space:12.5cm 17.cm 21.5cm
Commodity: Loop Top Fence that appearance is similar to N .S0 it is called N type ornamental fence.
Common size:
Mesh size: 1200x3000mm
Post: 60x80x1100X2pc
Bottom brace: 40x65x2x2800
U tube diameter: 15.5mm
U tube space: 70mm
loop top opening space: center to center 180mm;
net space: 165mm

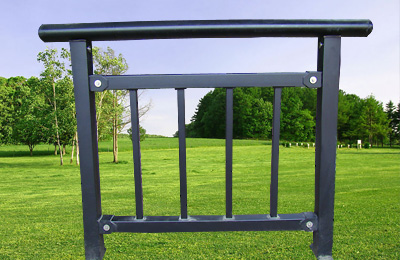

Steel balcony railing accessories using life of up to 50 years of modified high-strength nylon construction, its strength, hardness, much higher than ordinary steel materials, per square meter can withstand pressure of more than 183MPA, 2729MPA tensile strength, below 220 ℃ can withstand high temperature deformation, etc.
Steel balcony rails process: solderless connection, anyway interspersed assembled. Compared with the traditional iron fence, installation fast, looks more beautiful.

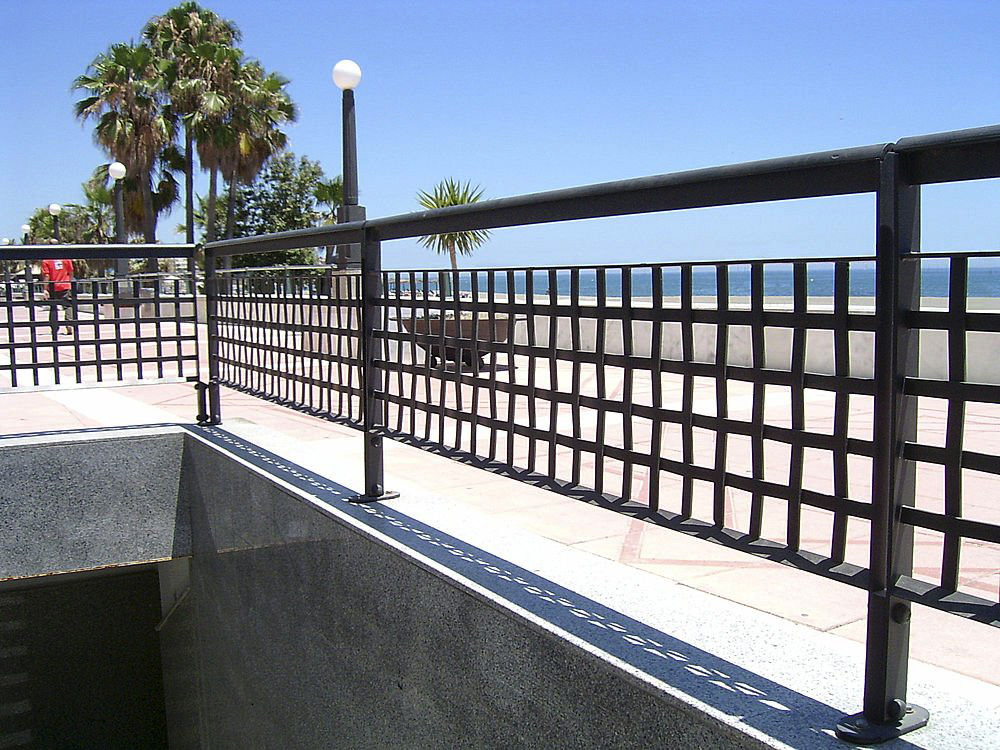

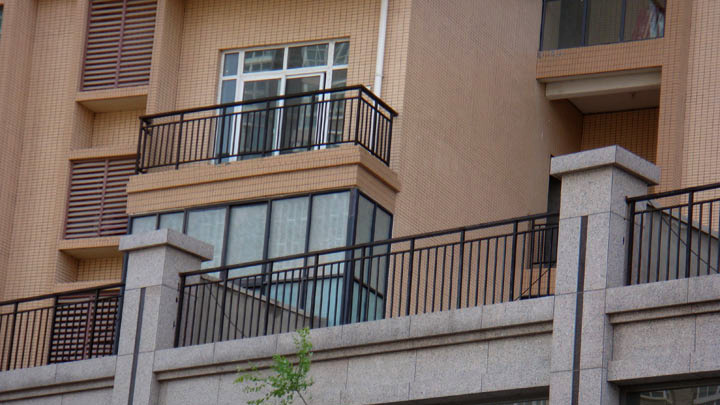

Steel balcony rails (height 800-1200mm) balcony rails, protective windows, stairs, handrails, fences, garden fences, shutters, air conditioning, fence, road fence. Surface horizontal tube + column + number + tube + Accessories (specifications with freedom of choice)
Steel Fence Surface Treatment
Untreated
Painting
Hot Dip Galvanizing
pvc
Steel Fence Welding
Manual welding
Machine Welding
Steel Fence Precautions
Universal Color: Black matte white grass green sky blue dark pink light pink black shiny
Special colors: champagne bronze imitation copper powder can be adjusted according to the specific color
