Guarding Mesh
Guarding mesh production process is generally double stigma welder. The right side of each grid aperture is generally 6.5cm-14cm. Use the wire thickness generally from 3.5mm-6mm. Wire material is generally Q235 low carbon wire. Welded wire through the ginning spend U.S. grid black film. Mesh dimensions general specifications for 1.5 m X4 meters, 2 meters X4 meters, 2 meters X3 m.
General surface treatment for the cold (electric) galvanized. There are also hot-dip galvanized, dip, spray. But overall, the ninety-nine percent of the cold (electric) galvanized.
Guarding Mesh Application

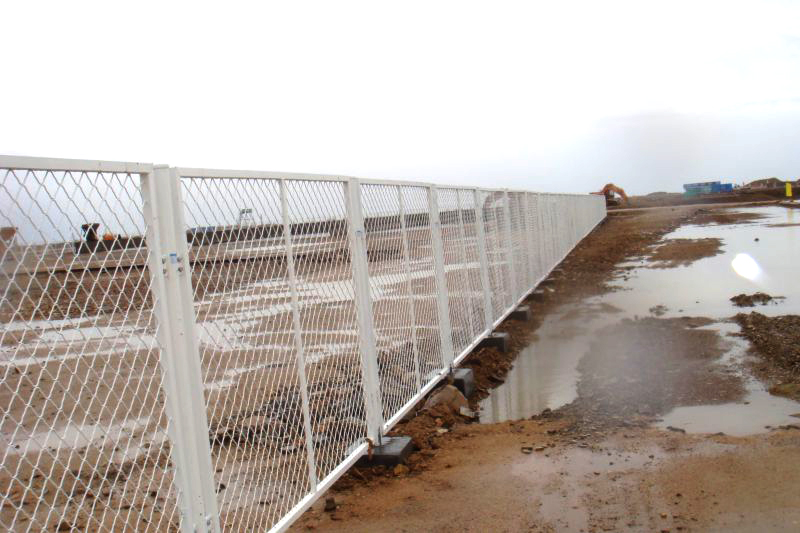

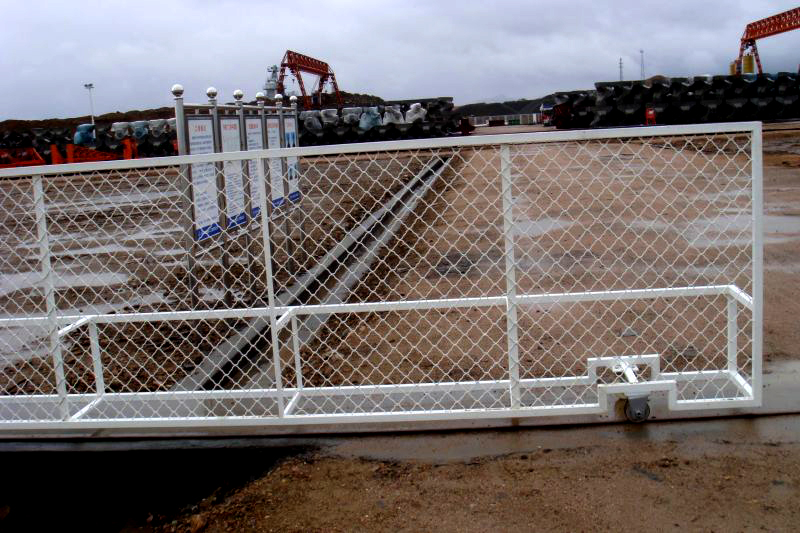

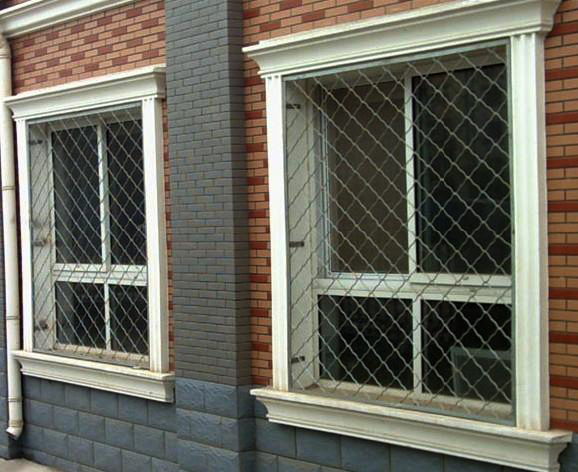

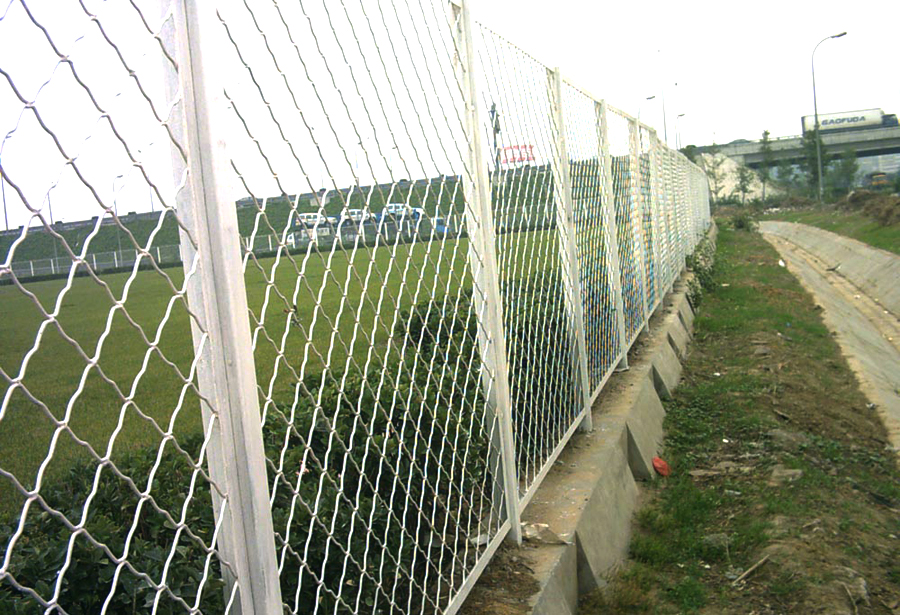

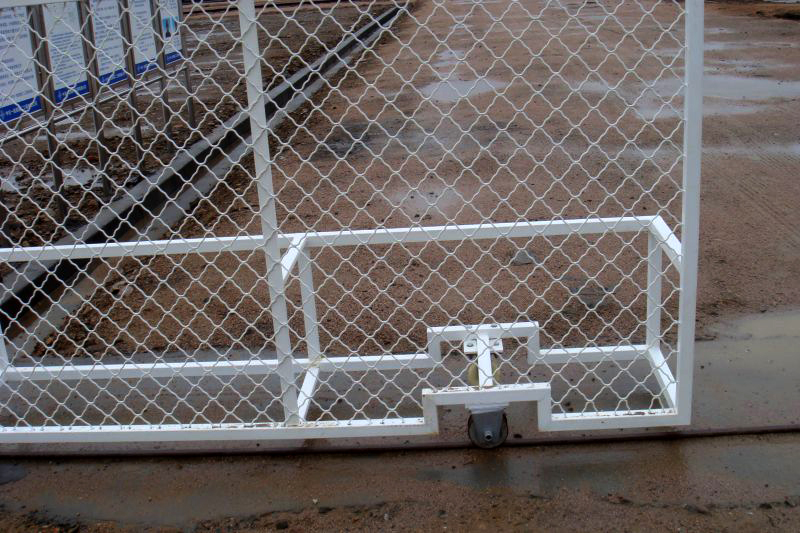

Guarding mesh can be used for raising chickens, ducks, geese, rabbits and zoo fence. Machinery and equipment protection, highway guardrail, sports venues fence, the road green belt protection. The screen in the production of a box-shaped containers, cages filled with rocks, etc., can be used to protect and support the seawall, hillsides, road and bridge, reservoirs and other civil engineering works. Flood control and fighting a flood. Can also be used for buildings, ships, bridges and boilers, building stairs, ceiling, non-slip platform aisle, reinforced lightweight building materials, civil engineering batch of cement, concrete setting, and for various automotive tools and air on the compressor tank, can also be used on various machines gear device.
Guarding Mesh Specification
Mesh: 50mm, 55mm, 65mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm
Wire diameter: 3.5mm-6.0mm
Mesh length: 1.0m-6m
Mesh width: 1m-2.0m
Guarding Mesh Surface Treatment
Untreated
Painting
Hot Dip Galvanizing
Guarding Mesh Welding
Machine Welding
Guarding Mesh Precautions
1) wire diameter
Guarding mesh is smaller, requiring wire by finer mesh larger, requiring more coarse silk warp. For example, a mesh diameter 6.5cm, diameter of iron required 3.5mm-4mm. Then fine a weld that is broken, then rough too, workers can not afford.
2) Dimensions
Guarding mesh dimensions width is generally no more than 2 meters. Length is generally no more than 4m. One worker effort over two meters, two galvanized plated bad. Length can reach six meters, but no more than six meters. After more than four meters generally significantly higher prices.
3) solid solder joint
Guarding mesh spot welding, are generally more secure, but if you are a novice workers, adjust the machine's technology is not high, there will be open solder joints situation. In this case, once there, bound to give customers and factories to bring significant losses.
