Mesh Fence
Mesh fencing refers to a range of wire mesh fencing or mesh fencing which includes types of mesh such as weld mesh, wire netting, rabbit netting, stock fence or stock mesh, horse netting and deer fencing mesh.
Our wire mesh fencing has many things in common such as it is open so it gives the user no privacy and it lets light through which is great for plants as it doesn't cut out the light from plants etc and it also lets the wind through the mesh which means that there is no wind resistance or wind loading on the wire mesh fencing.
1)grid structure concise, beautiful and practical;
2)easy to transport, install undulating terrain without restrictions;
3) especially for the mountain, slope, bending zone highly adaptive;
4)prices relatively low for a large area of mining
Mesh Fence Application

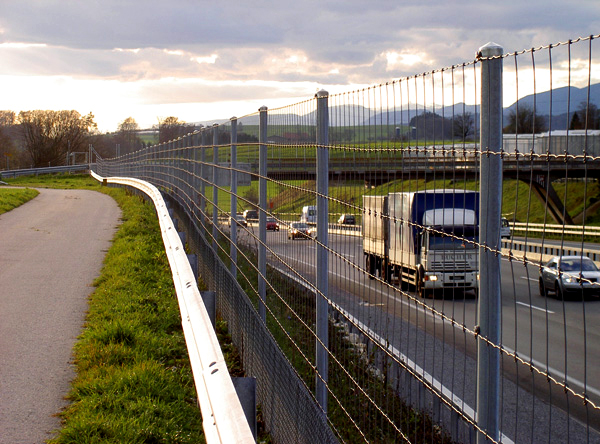

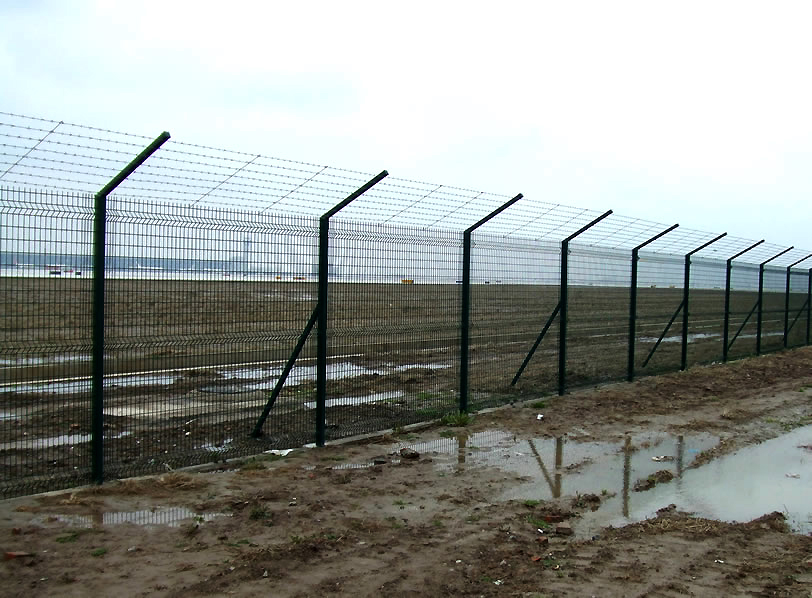

Fence is mainly used for highways, railways, airports, ports, docks, municipal construction and farming fence
Mesh Fence Specification
Framework Fence also known as "border-style anti-climb mesh welded sheet", "frame fence" and so on. It is a very flexible assembly of products, widely used in railways, highways, etc.; either made into a permanent network of walls, but also can be used as a temporary isolation, just using different column fixation can achieve
Mesh (mm): 75x150 80x160
Mesh (mm): 1800x3000

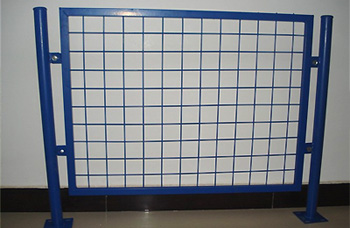

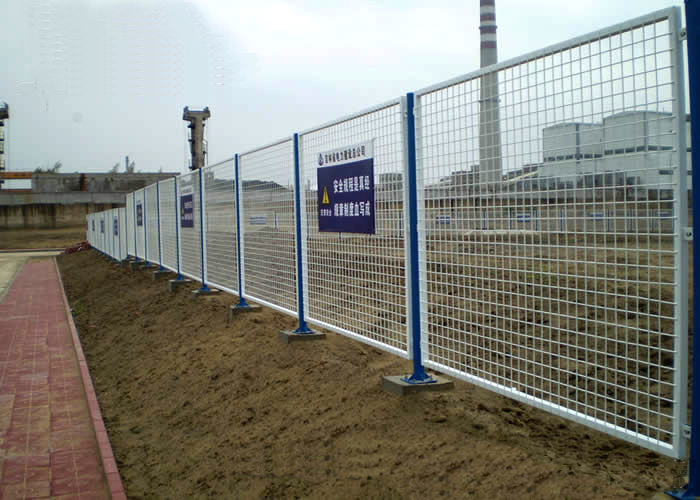

Framework Fence
Border (mm): 20x30x1.5 20x30x1.0
Dip mesh front (mm) :3-6
After the plastic mesh (mm) :4-7
Column Dimensions (mm): 48x2x2200
Overall bending: 30 °
Bending Length (mm): 300
Column spacing (mm): 3000
Column embedded (mm) :250-300
Embedded base (mm): 500x300x300 or 400 x400 x400
Surface treatment: Dip, spray, cold galvanizing, hot dip galvanized, hot dip galvanized after the first dip

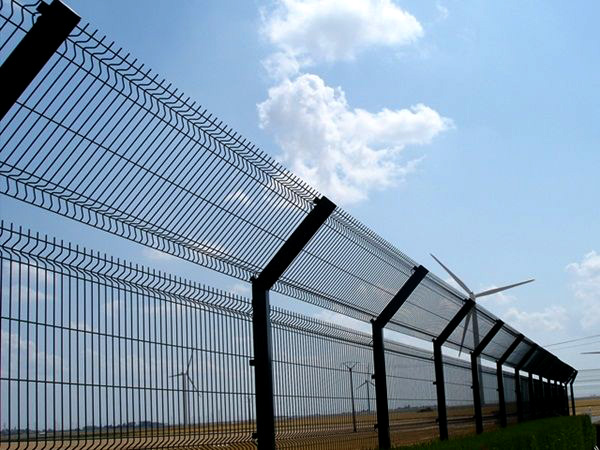

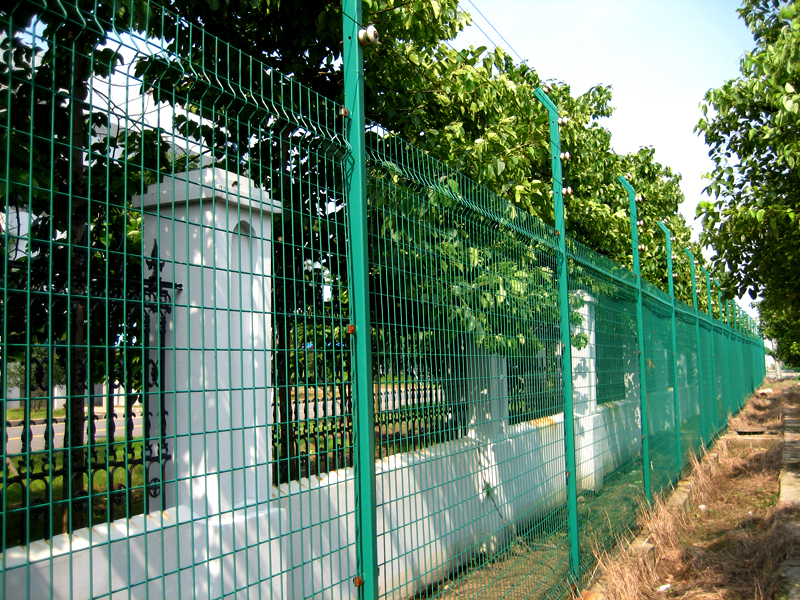

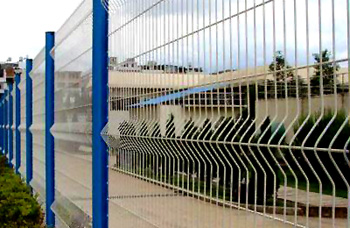

Triangle Bending Fence
Dip wire diameter: 5.0mm
Mesh size: 50mm X 180mm
Column size: 48 mm X 2.5mm
Mesh Size: 2.3m X 2.9m
Ribs four grids: 50X50mm
Structure: high strength cold Roberts with low carbon steel wire welded through hydroforming, with links to accessories and steel pillars fixed.
Features: high strength, good rigidity, beautiful shape, broad vision, easy installation, feeling bright and relaxed.
Advantages: proper bend, creating a unique aesthetic effect of such products, and the surface of the dip treatment using a variety of colors, such as yellow, green, red, column and mesh with different colors is even more pleasing while such products use with chassis pillars, installation takes just lay expansion bolts, very fast.
Applications: Closed railway network, living area fence, field fence, the zone isolation network and so on.

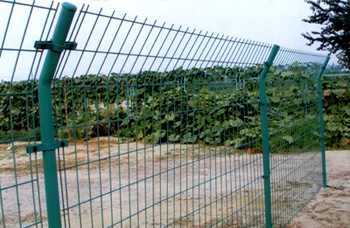

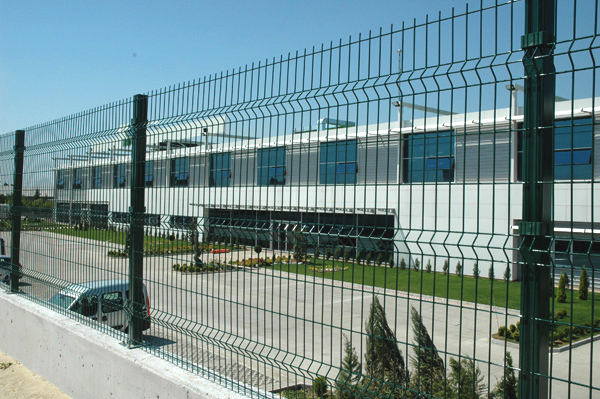

Bilateral Fence
1) Dip silk warp: 3.5mm--8mm;
2) Mesh: 60mm x 120mm wire around the bilateral;
3) Maximum size: 2300mm x 3000mm;
4) Vertical column: 48mm x 2mm steel dip treatment;
5) Accessories: rain hat connection card theft bolts;
6) Connection: Card received.

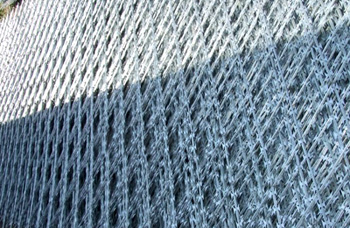

Razor Wire Fence
Mesh: high quality steel wire.
Blade: galvanized steel.
Craft: hot dip galvanized - stamping.
Type: BTO-22 (other models can be customized).
Mesh Size: 133 * 1580
Mesh: 22 * 28cm
Roll diameter size: 25cm, 30cm, 40cm, 45cm, 55cm, 60cm, etc.
Features:
Razor wire barbed wire, also known as the spatula is a developed protection, isolation ability of the new safety net products. It uses a steel plate stamping molding package attached to the wire (stringless) above, by the sharp corners make galvanized steel or stainless steel sheet blade made of high tensile steel wire core wire combination. Sharp knife stabbed by a double buckle after installation into belly like a snake, both beautiful and chilling. Played a very good deterrent.
Uses:
The razor wire is widely used in military areas, prisons, government offices, banks; living area walls, private homes, villas walls, doors, windows, highways, railways and other protective fence and border security.

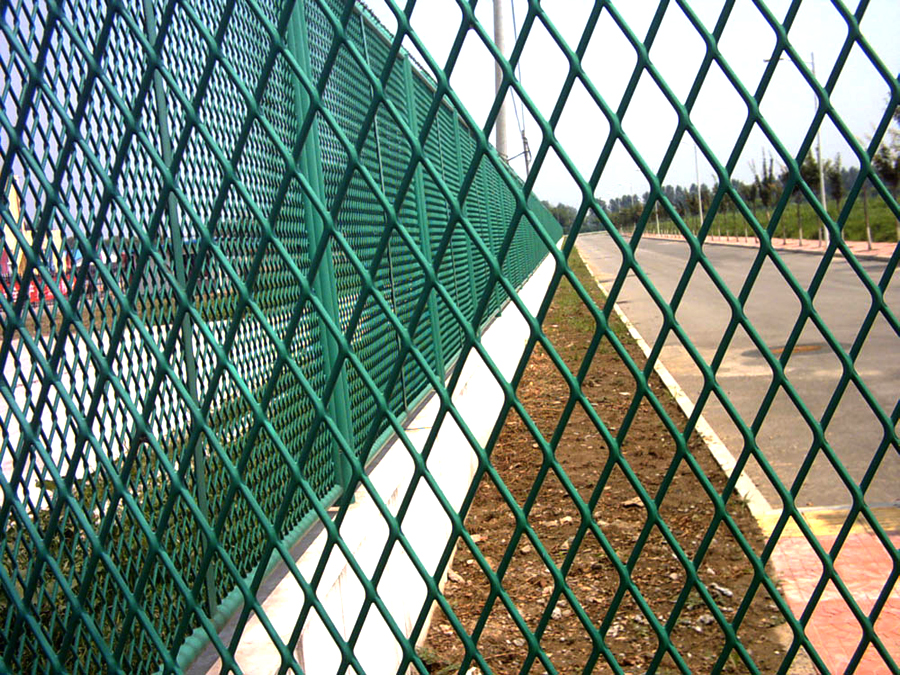

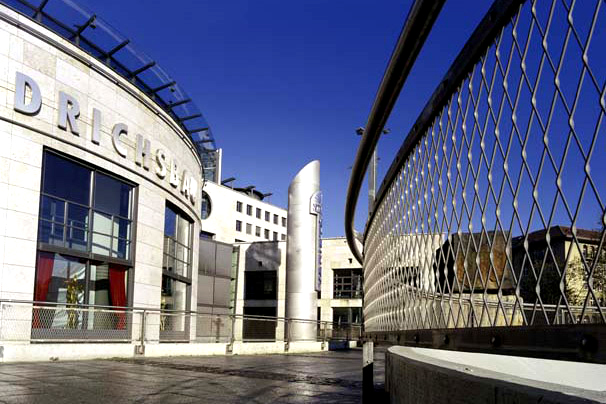

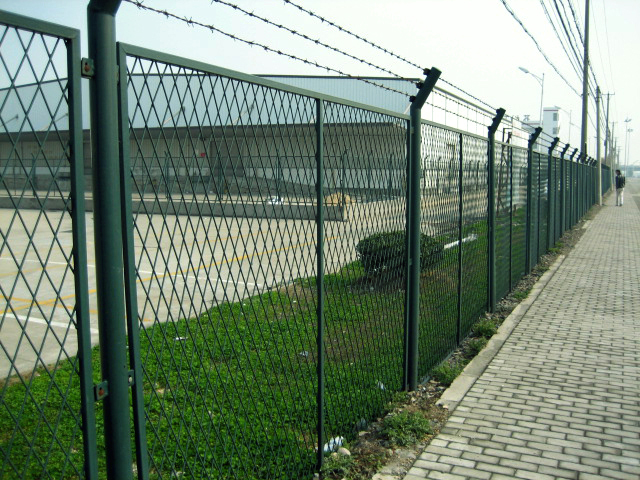

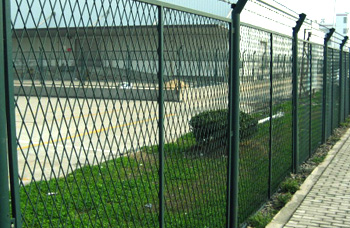

Expanded mesh fence
Composition: mainly by the specifications for 5X50, 5X5, 3X5, 5X10 expanded mesh, welded frame.
Material: Q 195 low carbon steel wire
Dip wire through :4.5 - 5mm
mesh: 75mm X150mm (rectangular hole)
embalmed: dip, galvanized / hot dip galvanized, spray, spray paint
Maximum size: 2.4m X 3m
Advantages:
1)An easy to install, simple
2) overall stability of high strength,
3) colored plastic layer has a good anti-corrosion and decorative effect,
4) mesh shape and strong colors green, blue, red, yellow, black
Main use: widely used in highway rail landfill test site, the railway closed highway guardrail zone enclosures stadium field fence fence fence municipal district protection.
Mesh Fence Reference
Materials include carbon steel wire, redrawing wire, galvanized wire, stainless steel wire, stainless steel wire highest price.
The larger the size the higher the price, the smaller the mesh fence prices will be high, because of the material used in the small hole, the more, weaving it complicated.
Column wall thickness determines how much the price column.
Highway fence surface treatment methods include: cold galvanized, hot dip galvanized, spray, hot dip. Now more commonly used is hot dip, hot dip treatment corrosion anti-aging properties, the product is also beautiful, beautify the city better, but the price is relatively higher.
Mesh Fence Surface Treatment
Untreated
Painting
Hot Dip Galvanizing
PVC
Mesh Fence Welding
Manual welding
Machine Welding
Fence Mesh Type
Weleded wire mesh panel
Expanded metal mesh

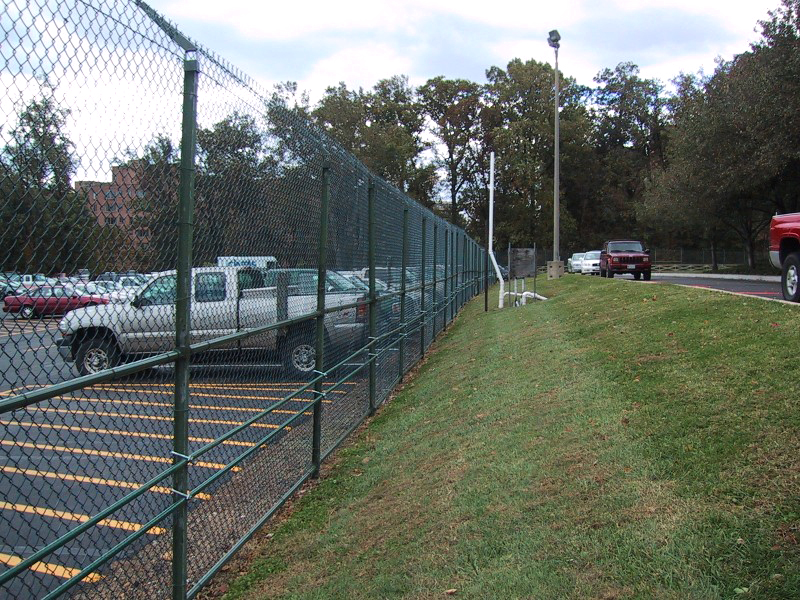

Chain link fence
Fence Post
1) We produce fence post for protective wire mesh fencings of express highway and express railway;
2) Wire mesh fence posts for security fencings of beach farming, fish farming and salt farm;
3) Wire mesh fence posts for security of forestry and forestry source protection;
4) Fencing posts for isolation and protecting husbandry and water sources;

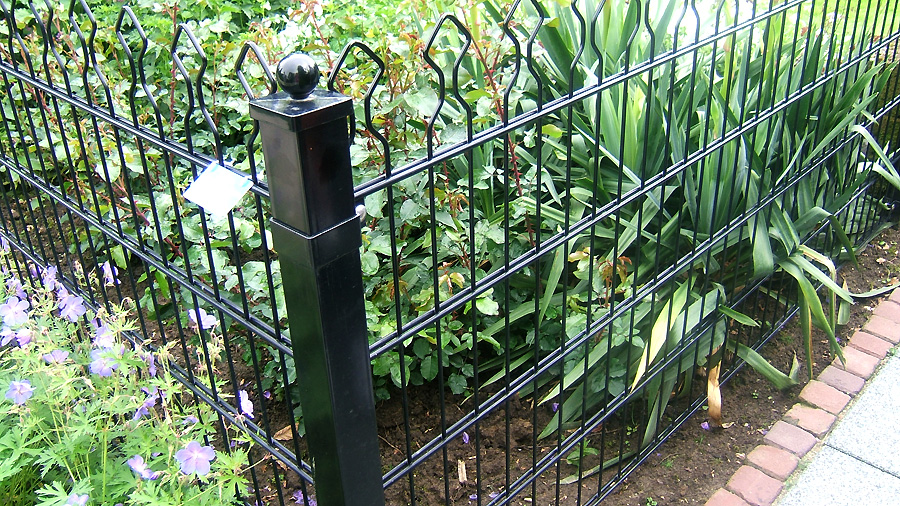

5) Fencing posts for gardens, road and houses.
